24"/ 26"/ 28"/ 30"
STARTING FROM :$1,100.00

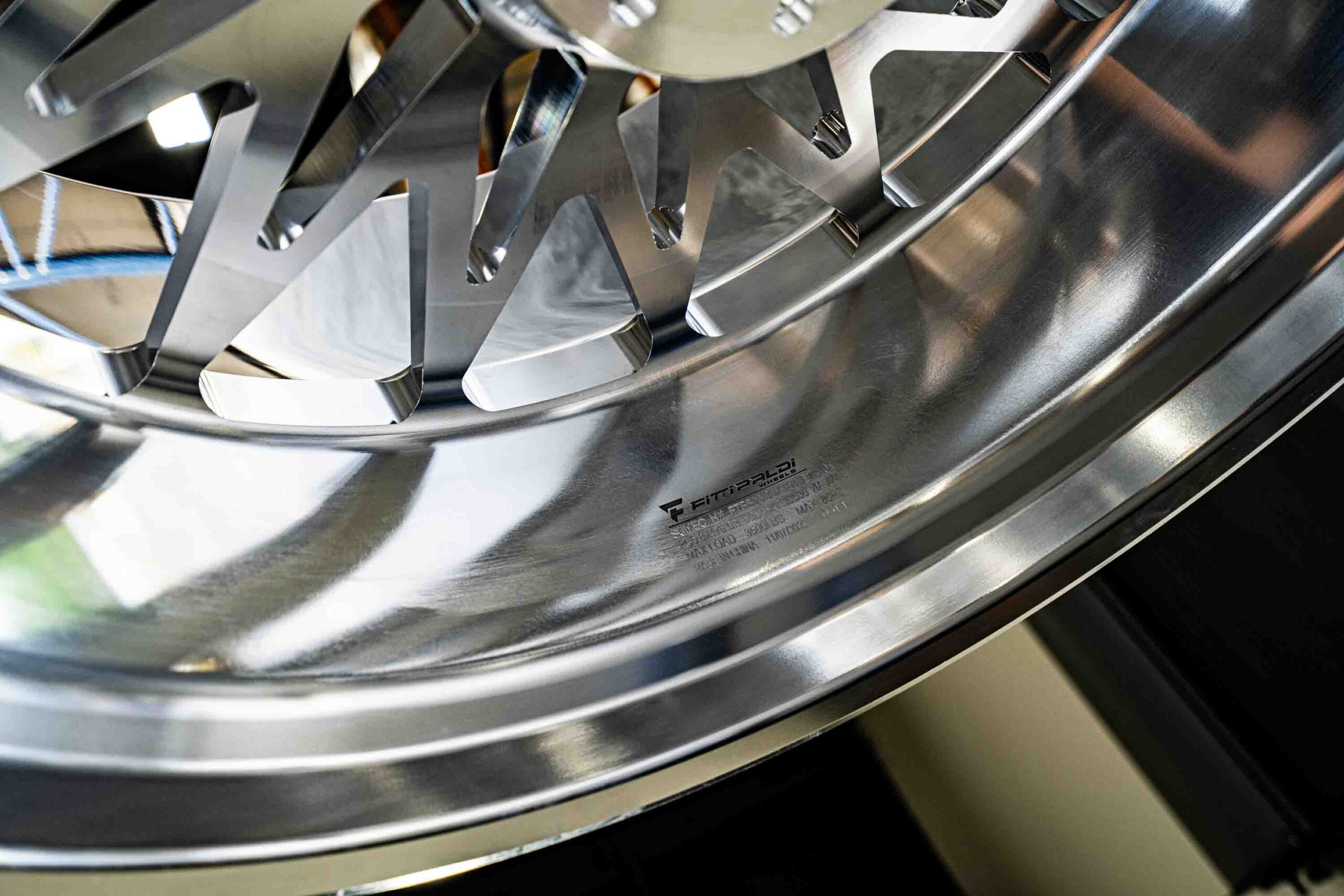

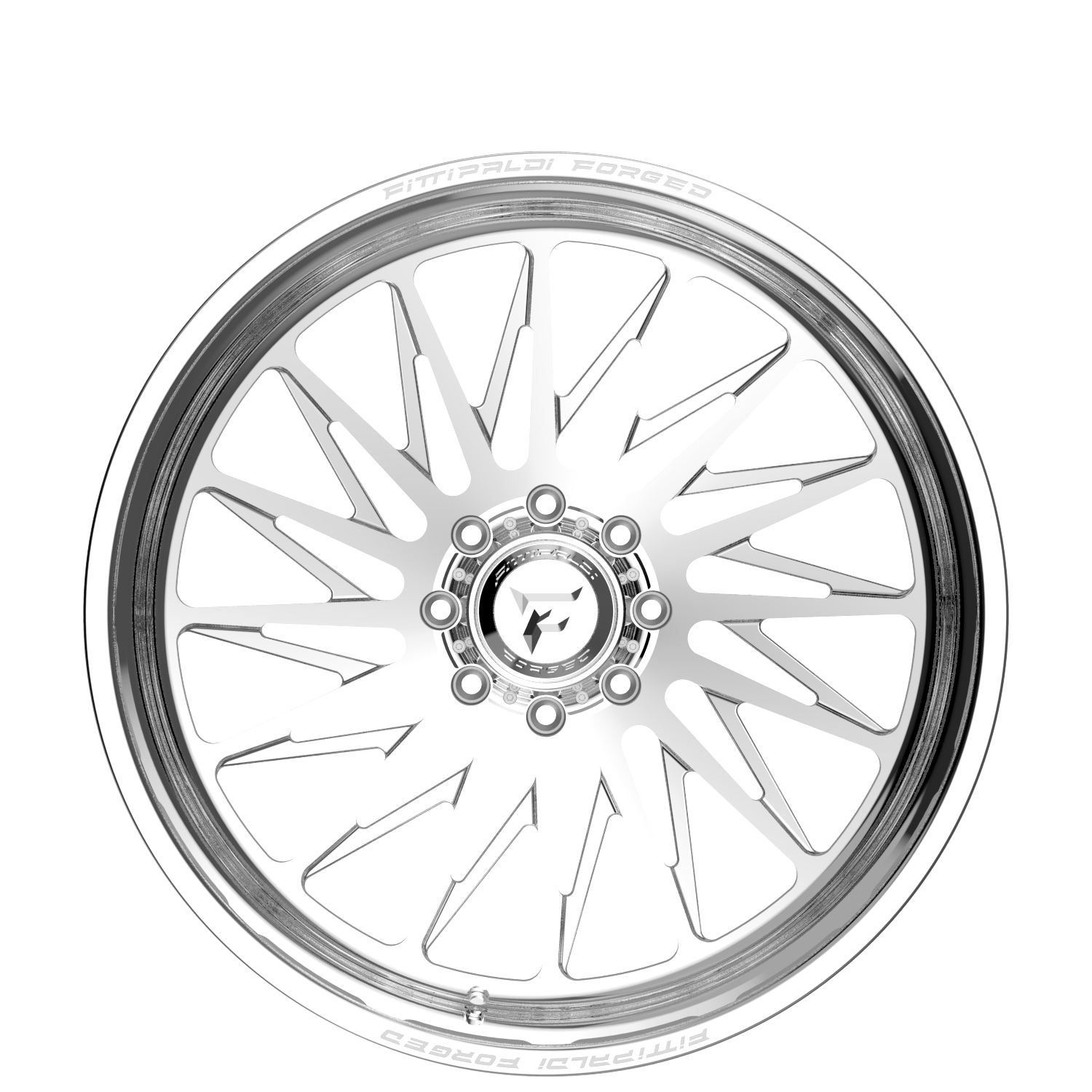

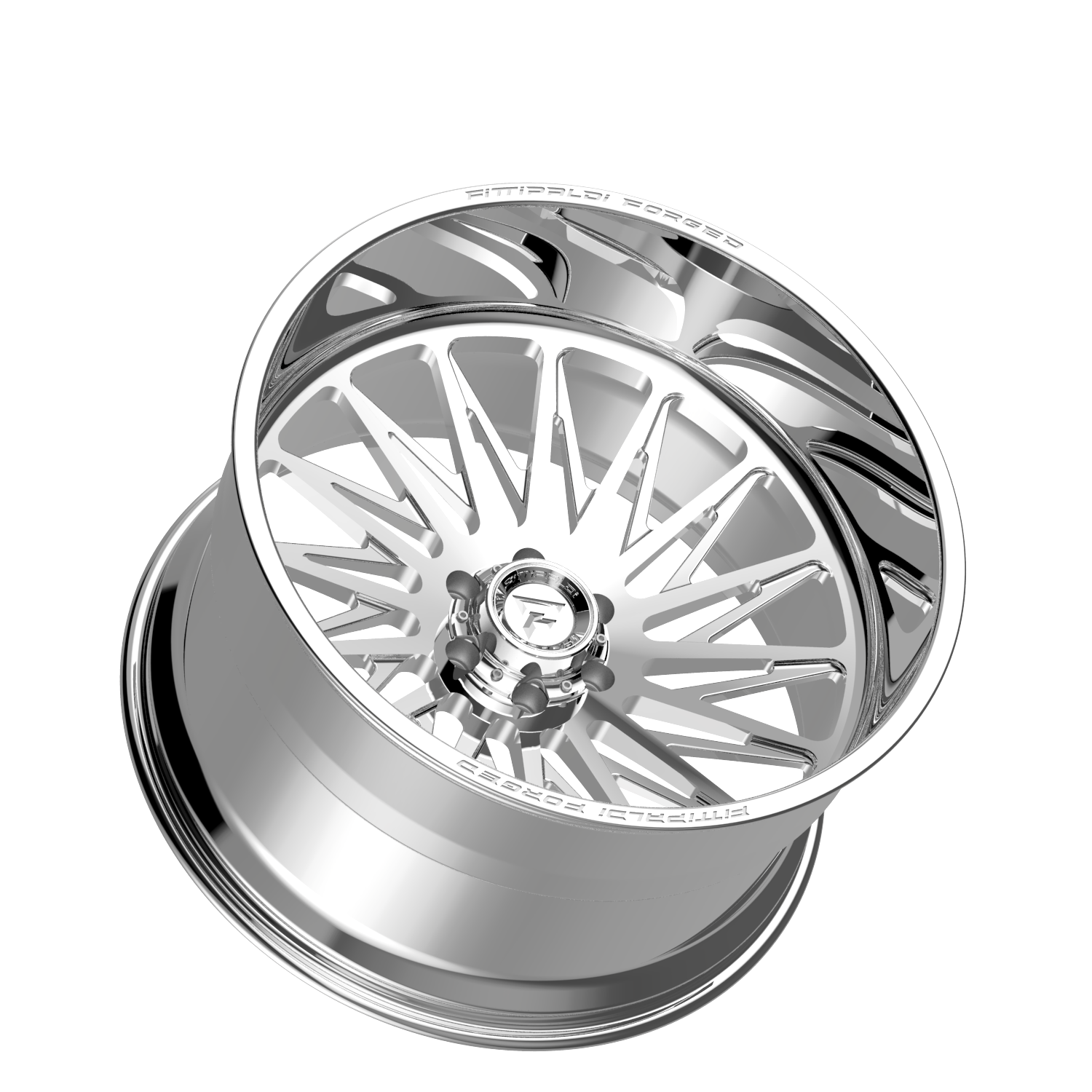

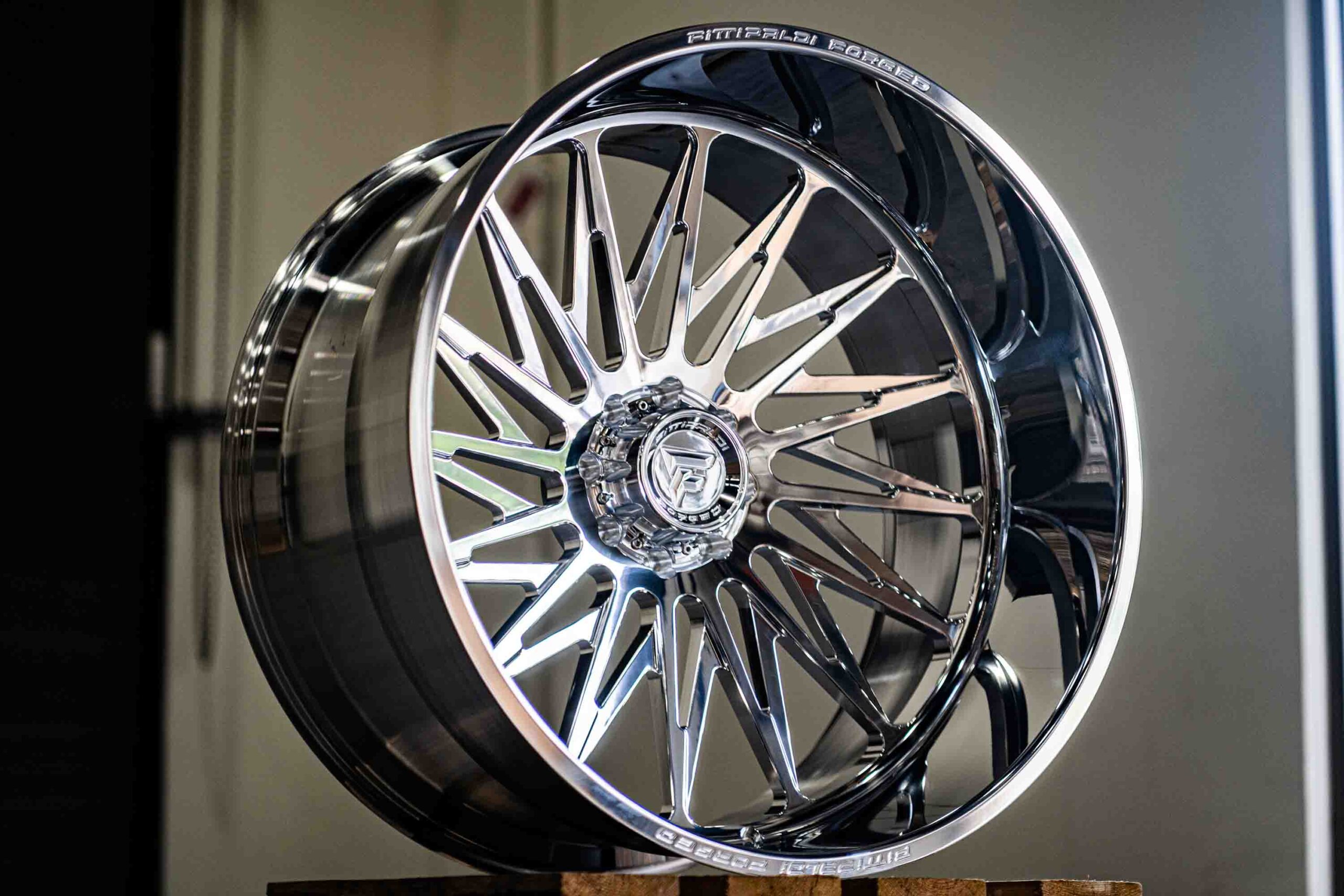

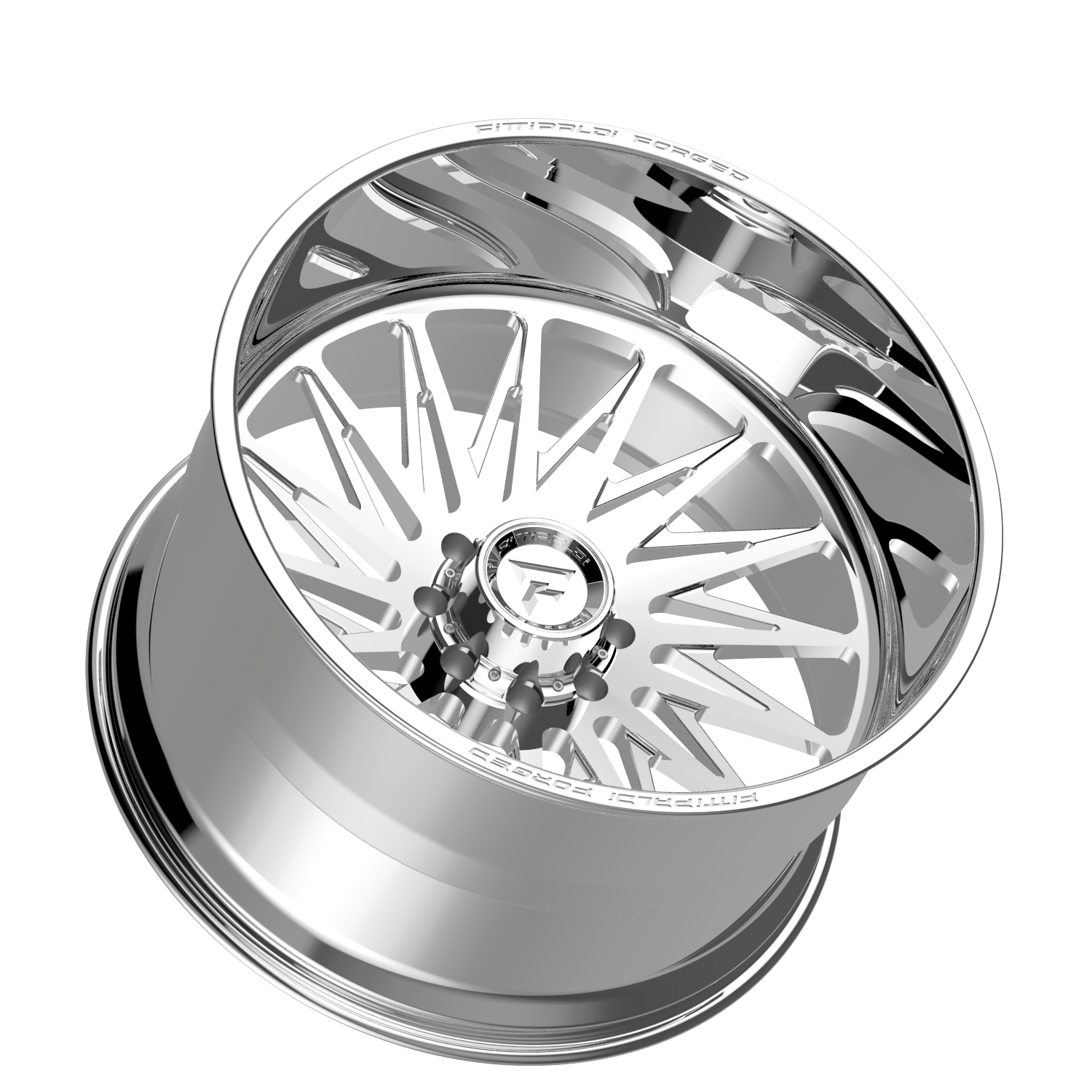

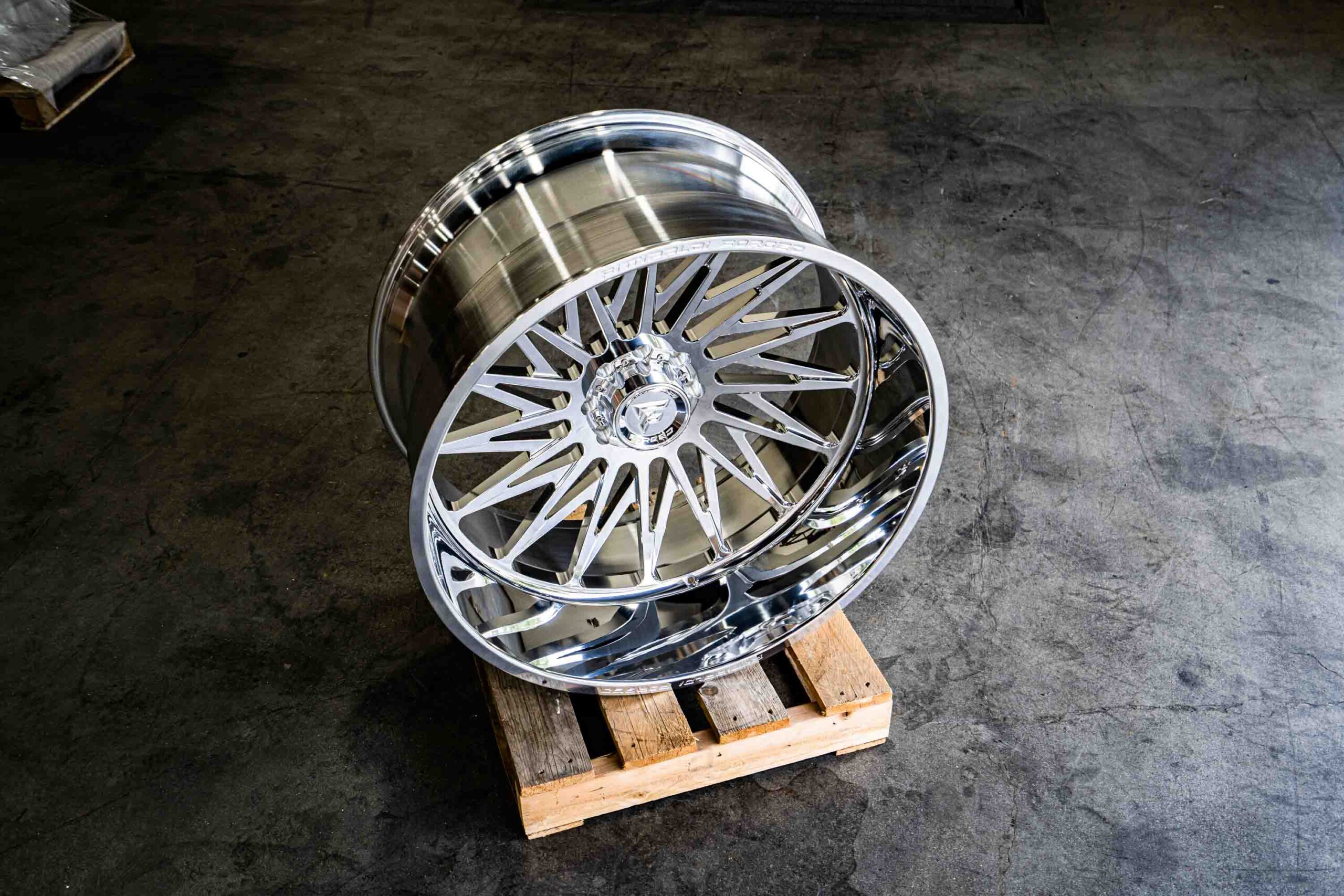

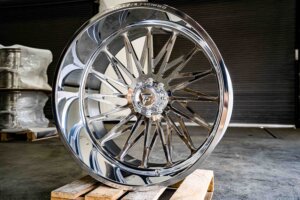

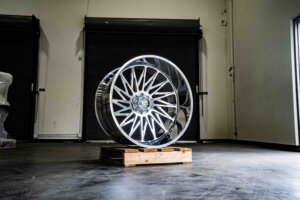

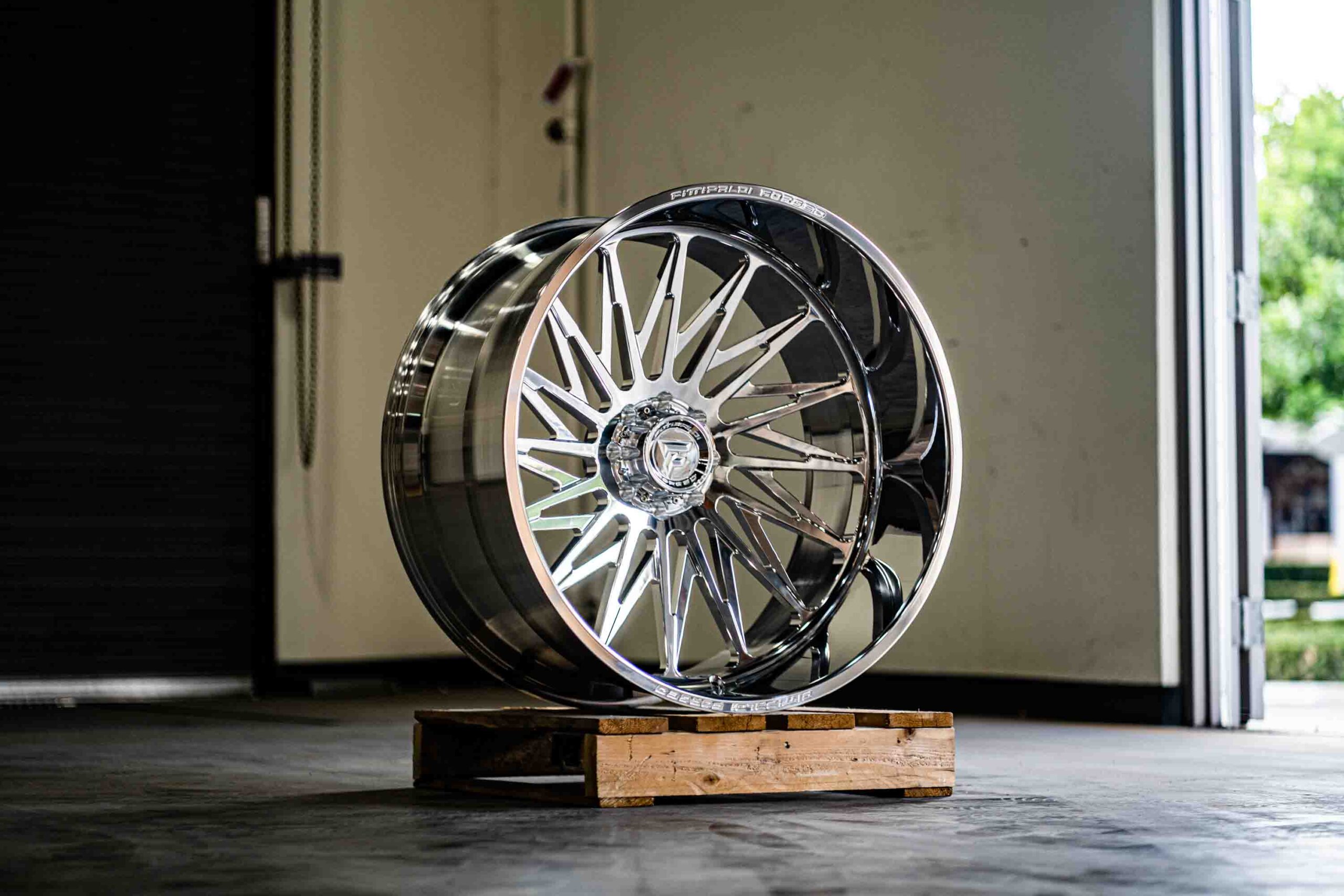

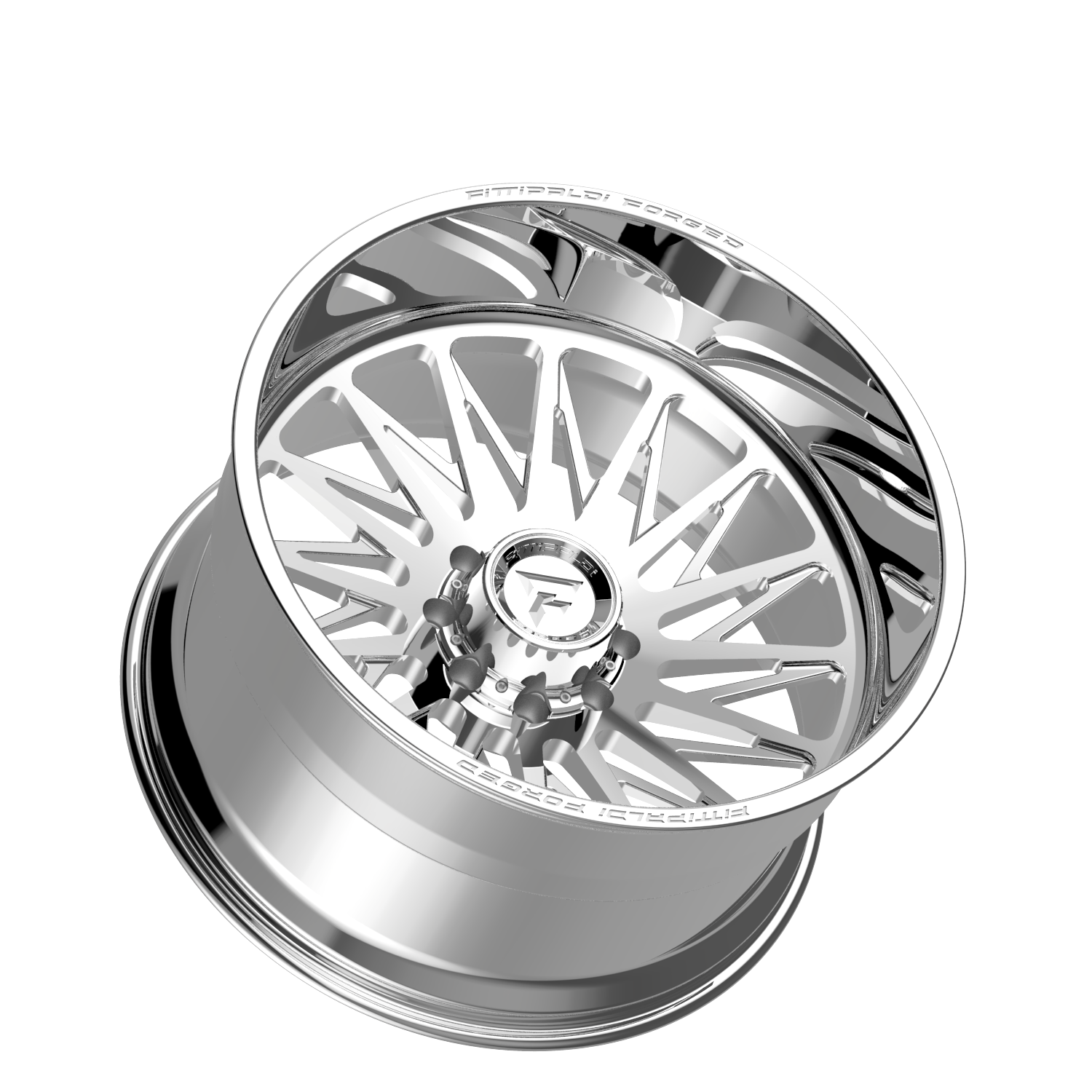

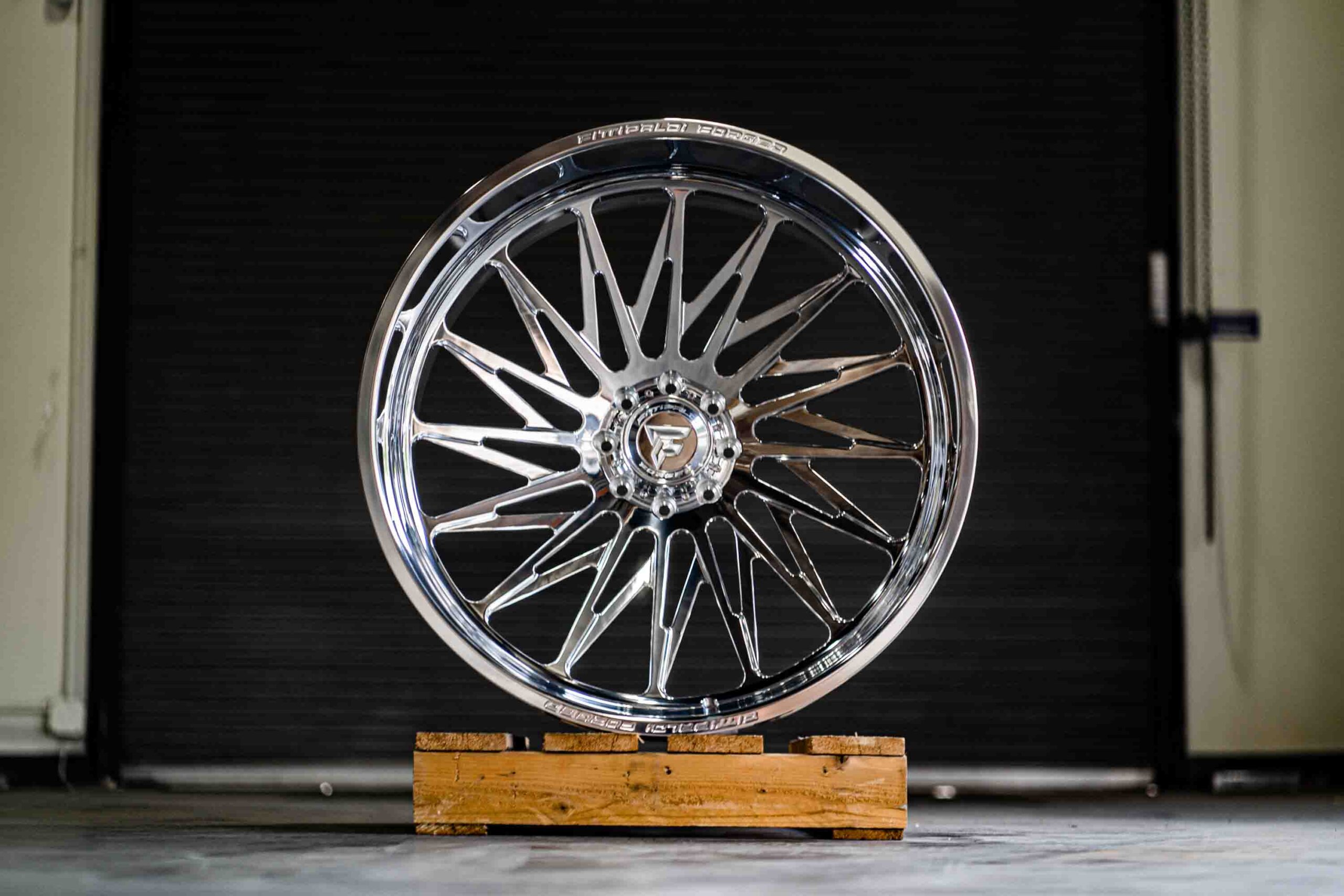

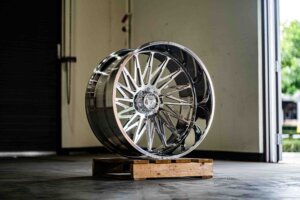

Clean yet complex, the FTF506 takes the typical forged wheel aesthetic to new heights. Literally. We started with 16 elegant tapered spokes on a concave profile and integrated an offset layer of reinforcing spokes to create a super strong staggered reverse triangle spoke design. Each Fittipaldi Off Road Forged wheel begins with a solid forged monoblock of the finest Aerospace-grade 6061 aluminum. Every monoblock is shaped by enormous pressure for the lightest and strongest forging before it is precision heat treated to T6 spec, further increasing stiffness and strength. Only then, can we begin the precision CNC-milling process to meet Fittipaldi Off Road’s highest standards of quality and design.
• One-piece forged monoblock construction
• Super strong 6061-T6 aerospace-grade aluminum alloy
• T6 heat treated for maximum strength
• Staggered directional reverse triangle spoke design
• True directional left and right wheels
• Deep lip with concave face profile
• Premium polished bolt-on forged aluminum centercap proudly showcasing Fittipaldi Off Road logo included with every wheel

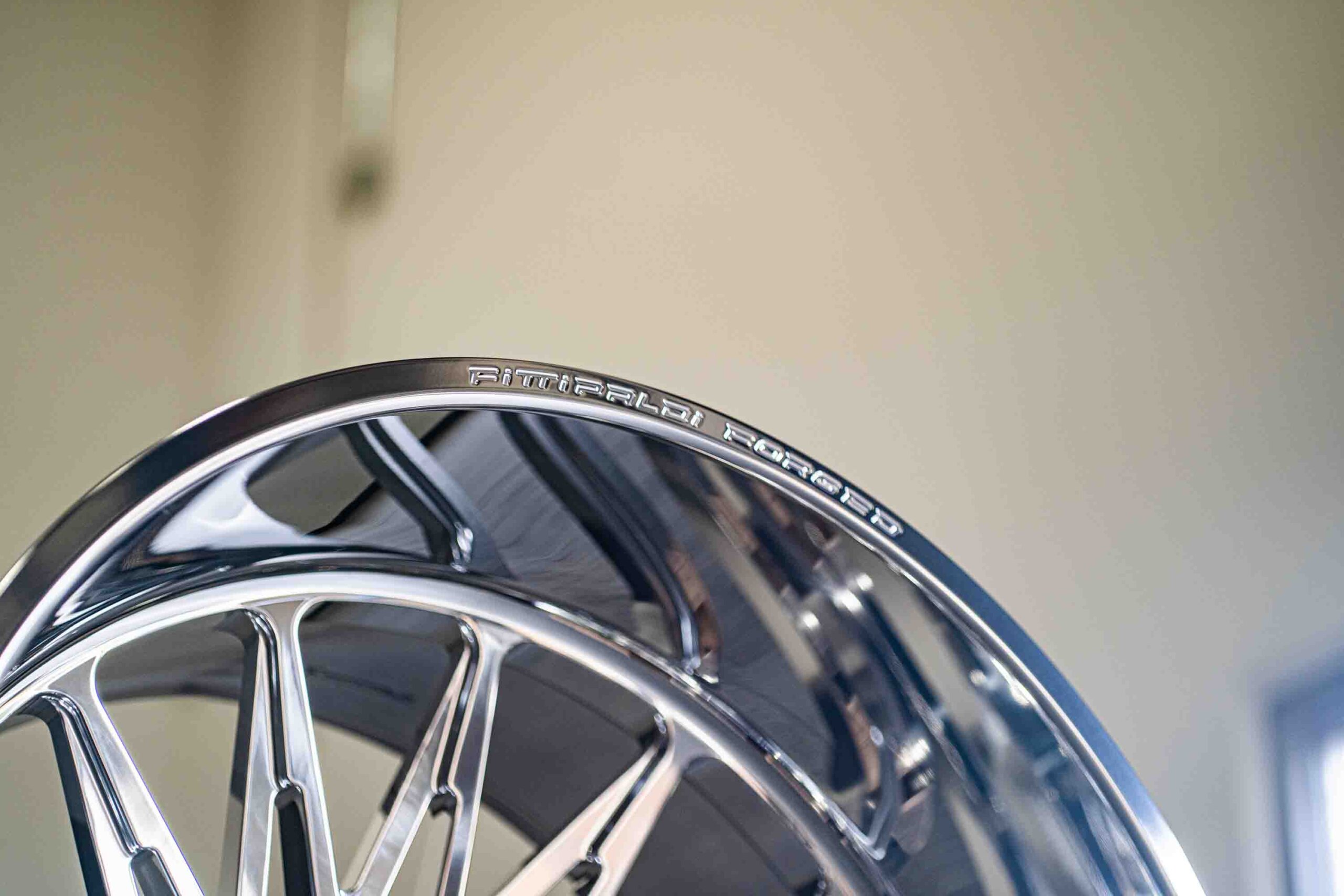

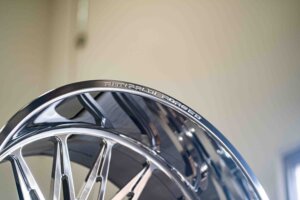

• Precision details including “Fittipaldi Forged” proudly milled on outer lip
• Available in premium polished
• TPMS compatible
• Industry-leading 2500-3500 lb. minimum load ratings
• Lifetime structural warranty
| PART NUMBER | WHEEL SIZE | BOLT PATTERN | OFFSET (MM) | BACK SPACING | HUB BORE (MM) | LOAD RATING | CAP | MAP |
|---|---|---|---|---|---|---|---|---|
| FTF506-24128170N44P-L | 24X12 | 8X170 | -44 | 4.77 | 125.2 | 3500 | CAP-FTF-8 | $1,100.00 |
| FTF506-24128170N44P-R | 24X12 | 8X170 | -44 | 4.77 | 125.2 | 3500 | CAP-FTF-8 | $1,100.00 |
| FTF506-24145127N76P-L | 24X14 | 5X5.00 | -76 | 4.51 | 71.5 | 2500 | CAP-FTF-5S | $1,175.00 |
| FTF506-24145127N76P-R | 24X14 | 5X5.00 | -76 | 4.51 | 71.5 | 2500 | CAP-FTF-5S | $1,175.00 |
| FTF506-24146135N76P-L | 24X14 | 6X135 | -76 | 4.51 | 87.1 | 2500 | CAP-FTF-6 | $1,175.00 |
| FTF506-24146135N76P-R | 24X14 | 6X135 | -76 | 4.51 | 87.1 | 2500 | CAP-FTF-6 | $1,175.00 |
| FTF506-24146139N76P-L | 24X14 | 6X5.50 | -76 | 4.51 | 106.2 | 2500 | CAP-FTF-6 | $1,175.00 |
| FTF506-24146139N76P-R | 24X14 | 6X5.50 | -76 | 4.51 | 106.2 | 2500 | CAP-FTF-6 | $1,175.00 |
| FTF506-24148165N76P-L | 24X14 | 8X6.50 | -76 | 4.51 | 125.2 | 3500 | CAP-FTF-8 | $1,175.00 |
| FTF506-24148165N76P-R | 24X14 | 8X6.50 | -76 | 4.51 | 125.2 | 3500 | CAP-FTF-8 | $1,175.00 |
| FTF506-24148170N76P-L | 24X14 | 8X170 | -76 | 4.51 | 125.2 | 3500 | CAP-FTF-8 | $1,175.00 |
| FTF506-24148170N76P-R | 24X14 | 8X170 | -76 | 4.51 | 125.2 | 3500 | CAP-FTF-8 | $1,175.00 |
| FTF506-26145127N76P-L | 26X14 | 5X5.00 | -76 | 4.51 | 71.5 | 2500 | CAP-FTF-5S | $1,600.00 |
| FTF506-26145127N76P-R | 26X14 | 5X5.00 | -76 | 4.51 | 71.5 | 2500 | CAP-FTF-5S | $1,600.00 |
| FTF506-26146139N76P-L | 26X14 | 6X5.50 | -76 | 4.51 | 106.2 | 2500 | CAP-FTF-6 | $1,600.00 |
| FTF506-26146139N76P-R | 26X14 | 6X5.50 | -76 | 4.51 | 106.2 | 2500 | CAP-FTF-6 | $1,600.00 |
| FTF506-26148170N76P-L | 26X14 | 8X170 | -76 | 4.51 | 125.2 | 3500 | CAP-FTF-8 | $1,600.00 |
| FTF506-26148170N76P-R | 26X14 | 8X170 | -76 | 4.51 | 125.2 | 3500 | CAP-FTF-8 | $1,600.00 |
| FTF506-26148180N76P-L | 26X14 | 8X180 | -76 | 4.51 | 124.3 | 3500 | CAP-FTF-8 | $1,600.00 |
| FTF506-26148180N76P-R | 26X14 | 8X180 | -76 | 4.51 | 124.3 | 3500 | CAP-FTF-8 | $1,600.00 |
| FTF506-26168165N101P-L | 26X16 | 8X6.50 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $1,675.00 |
| FTF506-26168165N101P-R | 26X16 | 8X6.50 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $1,675.00 |
| FTF506-26168170N101P-L | 26X16 | 8X170 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $1,675.00 |
| FTF506-26168170N101P-R | 26X16 | 8X170 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $1,675.00 |
| FTF506-28168165N101P-L | 28X16 | 8X6.50 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $2,200.00 |
| FTF506-28168165N101P-R | 28X16 | 8X6.50 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $2,200.00 |
| FTF506-28168170N101P-L | 28X16 | 8X170 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $2,200.00 |
| FTF506-28168170N101P-R | 28X16 | 8X170 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $2,200.00 |
| FTF506-30168165N101P-L | 30X16 | 8X6.50 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $2,800.00 |
| FTF506-30168165N101P-R | 30X16 | 8X6.50 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $2,800.00 |
| FTF506-30168170N101P-L | 30X16 | 8X170 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $2,800.00 |
| FTF506-30168170N101P-R | 30X16 | 8X170 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | $2,800.00 |
| FTF506-30168180N101P-L | 30x16 | 8X180 | -101 | 4.52 | 124.3 | 3500 | CAP-FTF-8 | $2,800.00 |
| FTF506-30168180N101P-R | 30x16 | 8X180 | -101 | 4.52 | 124.3 | 3500 | CAP-FTF-8 | $2,800.00 |
