17"/ 20"
STARTING FROM :$530.00

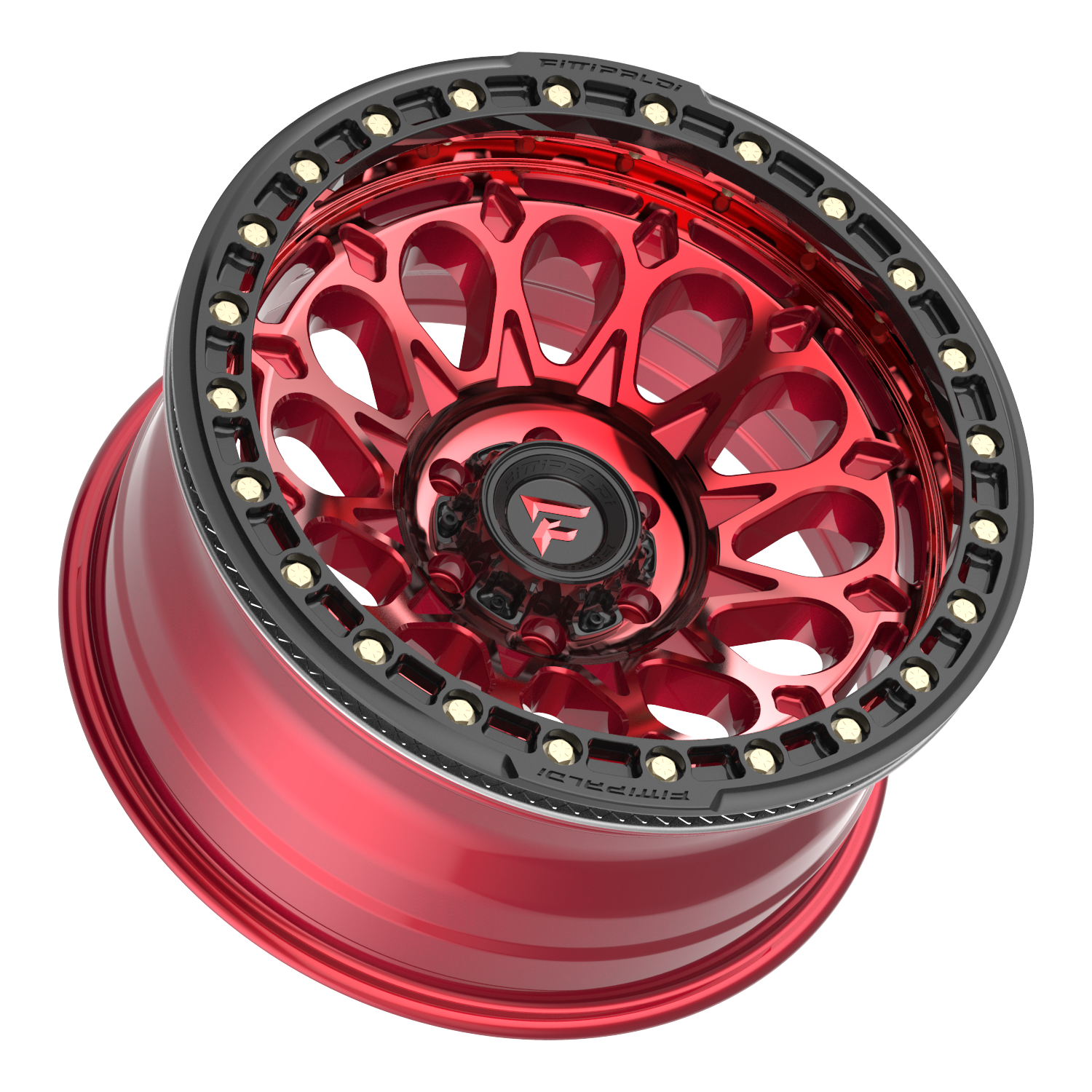

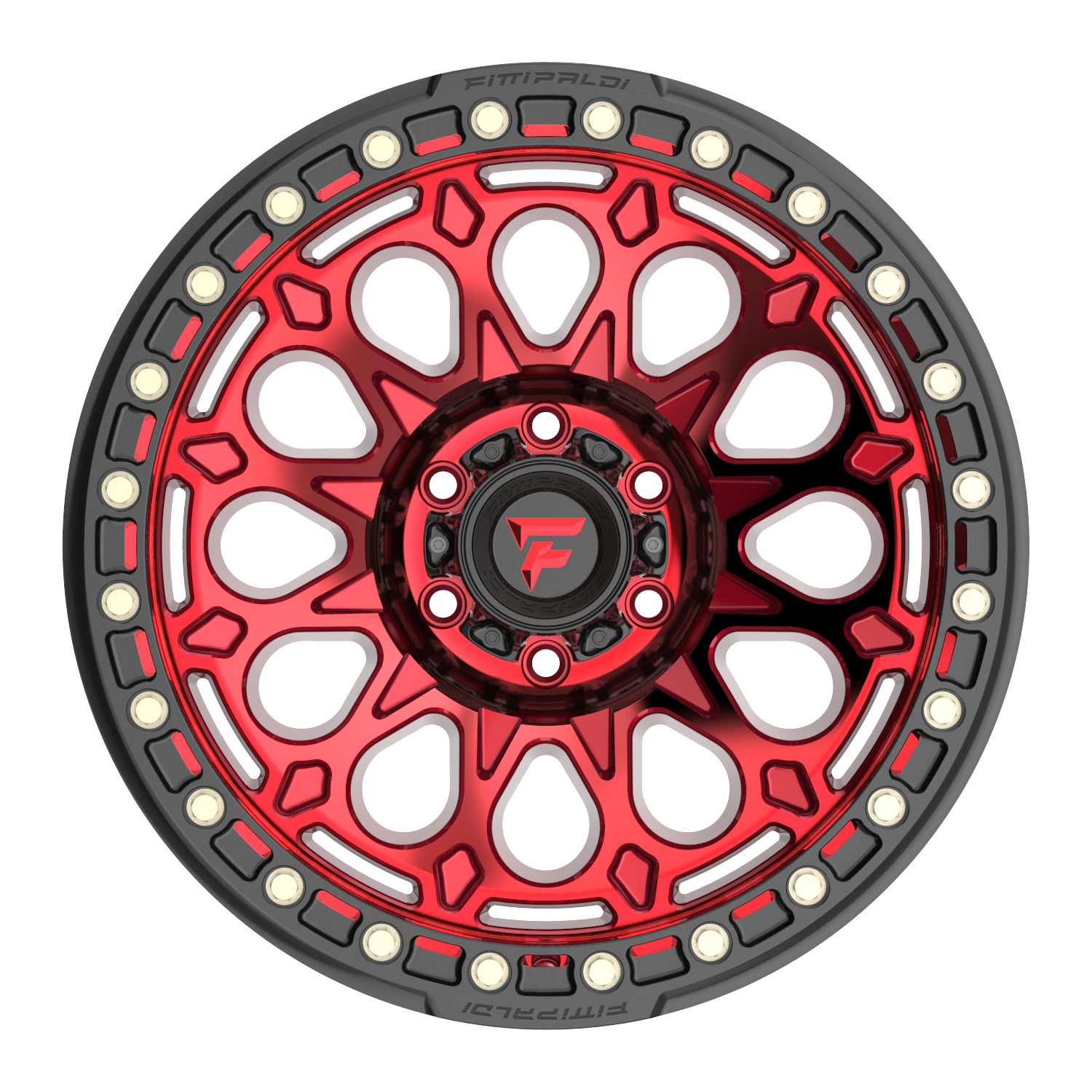

The FB153 comes from our most popular style in the Terra Series; FT101. Being in high demand, we took the base of the FT101 and refined the details to best fit the performance of extreme off road terrain while keeping its overall aggressive stance. What we ended up with is an extremely durable off road wheel that cannot be ignored or mistaken for any other. FB153 which is available in satin black with a gloss black ring, gloss clearcoated machined finish with a machined ring and gloss red tint machined with a gloss black beadlock ring.
• Exceptionally strong A356 aluminum alloy
• T6 heat treated for maximum strength
• Super strong cathedral window design with a deep concave profile
• Forged & heat treated 6061-T6 aluminum beadlock ring with lightweight milling and Fittipaldi logo
• Reinforced, variable thickness barrel for optimum strength to weight ratio
• Serrated beadlock mounting face for maximum weight reduction
• High performance 3/8″ grade 8 yellow zinc-plated beadlock hardware
• Heavy duty stainless steel threaded inserts for maximum durability and high torque cross-threading resistance
• Bolt-on cap with Fittipaldi logo for 6 lug applications
• Snap-on cap with Fittipaldi logo for 5 & 8 lug applications
• Incredibly tough 3250 lb. to 3650 lb. load ratings
• TPMS compatible
| PART NUMBER | WHEEL SIZE | BOLT PATTERN | OFFSET (MM) | BACK SPACING | HUB BORE (MM) | LOAD RATING | CAP | MAP |
|---|---|---|---|---|---|---|---|---|
| FB153-17905127N15B | 17x9 | 5X5.00 | -15 | 4.41 | 71.5 | 3250 | CAP-FOP-5-B | $530.00 |
| FB153-17906135N15B | 17x9 | 6x135 | -15 | 4.41 | 87.1 | 3250 | CAP-FOP-6-B | $530.00 |
| FB153-17906139N15B | 17x9 | 6X5.50 | -15 | 4.41 | 106.2 | 3250 | CAP-FT-6-SBC | $530.00 |
| FB153-17908165N15B | 17x9 | 8X6.50 | -15 | 4.41 | 125.2 | 3650 | CAP-FT-6-SBC | $530.00 |
| FB153-17908170N15B | 17x9 | 8x170 | -15 | 4.41 | 125.2 | 3650 | CAP-FT-8-SBC | $530.00 |
| FB153-17905127N15M | 17x9 | 5X5.00 | -15 | 4.41 | 71.5 | 3250 | CAP-FOP-5-SC | $550.00 |
| FB153-17906135N15M | 17x9 | 6x135 | -15 | 4.41 | 87.1 | 3250 | CAP-FOP-6-SC | $550.00 |
| FB153-17906139N15M | 17x9 | 6X5.50 | -15 | 4.41 | 106.2 | 3250 | CAP-FT-6-SC | $550.00 |
| FB153-17908165N15M | 17x9 | 8X6.50 | -15 | 4.41 | 125.2 | 3650 | CAP-FT-6-SC | $550.00 |
| FB153-17908170N15M | 17x9 | 8x170 | -15 | 4.41 | 125.2 | 3650 | CAP-FT-8-SC | $550.00 |
| FB153-17905127N15R | 17x9 | 5X5.00 | -15 | 4.41 | 71.5 | 3250 | CAP-FOP-5-GBR | $560.00 |
| FB153-17906135N15R | 17x9 | 6x135 | -15 | 4.41 | 87.1 | 3250 | CAP-FOP-6-GBR | $560.00 |
| FB153-17906139N15R | 17x9 | 6X5.50 | -15 | 4.41 | 106.2 | 3250 | CAP-FT-6-GBR | $560.00 |
| FB153-17908165N15R | 17x9 | 8X6.50 | -15 | 4.41 | 125.2 | 3650 | CAP-FT-6-GBR | $560.00 |
| FB153-17908170N15R | 17x9 | 8x170 | -15 | 4.41 | 125.2 | 3650 | CAP-FT-8-GBR | $560.00 |
| FB153-20105127N38B | 20x10 | 5X5.00 | -38 | 4 | 71.5 | 3250 | CAP-FOP-5-B | $650.00 |
| FB153-20106135N38B | 20x10 | 6x135 | -38 | 4 | 87.1 | 3250 | CAP-FOP-6-B | $650.00 |
| FB153-20106139N38B | 20x10 | 6X5.50 | -38 | 4 | 106.2 | 3250 | CAP-FT-6-SBC | $650.00 |
| FB153-20108165N38B | 20x10 | 8X6.50 | -38 | 4 | 125.2 | 3650 | CAP-FT-8-SBC | $650.00 |
| FB153-20108170N38B | 20x10 | 8x170 | -38 | 4 | 125.2 | 3650 | CAP-FT-8-SBC | $650.00 |
| FB153-20105127N38M | 20x10 | 5X5.00 | -38 | 4 | 71.5 | 3250 | CAP-FOP-5-SC | $670.00 |
| FB153-20106139N38M | 20x10 | 6X5.50 | -38 | 4 | 106.2 | 3250 | CAP-FT-6-SC | $670.00 |
| FB153-20108165N38M | 20x10 | 8X6.50 | -38 | 4 | 125.2 | 3650 | CAP-FT-8-SC | $670.00 |
| FB153-20108170N38M | 20x10 | 8x170 | -38 | 4 | 125.2 | 3650 | CAP-FT-8-SC | $670.00 |
| FB153-20105127N38R | 20x10 | 5X5.00 | -38 | 4 | 71.5 | 3250 | CAP-FOP-5-GBR | $680.00 |
| FB153-20106135N38R | 20x10 | 6x135 | -38 | 4 | 87.1 | 3250 | CAP-FOP-6-GBR | $680.00 |
| FB153-20106139N38R | 20x10 | 6X5.50 | -38 | 4 | 106.2 | 3250 | CAP-FT-6-GBR | $680.00 |
| FB153-20108165N38R | 20x10 | 8X6.50 | -38 | 4 | 125.2 | 3650 | CAP-FT-8-GBR | $680.00 |
| FB153-20108170N38R | 20x10 | 8x170 | -38 | 4 | 125.2 | 3650 | CAP-FT-8-GBR | $680.00 |
High performance Beadlock wheels with forged ring that are built for the most rigorous terrain.
